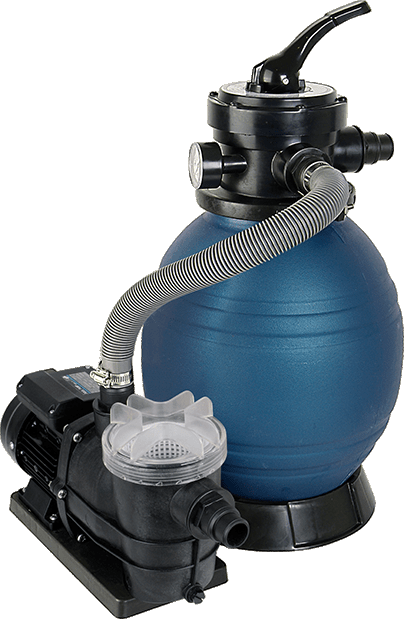

The SPF 370 F swimming pool filter set comprises a pump with pre-filter and a sand filter with these functions:
# filtering
# back-flushing (filter cleaning)
# rinsing (using sand to remove suspended materials)
# winter position (relieving stress on the seals).

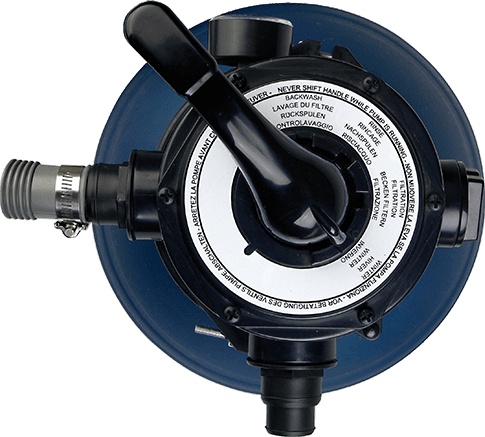

The appliance is controlled via a 4-way valve. The filter set is equipped with a gauge. The recommended running time is 9 to 10 hours per day. The set ensures clear water in the swimming pool and efficient energy use. The system can be assembled and installed quickly. The pump inlet opening should be at least 30 cm below the water level in the swimming pool.
Note: package does not include quartz sand.
For poolsize 40m3
Pump outlet 11/2"
Pump power P1: 550 W (230V)
Pump power P2: 370 W (230V)
Output filter 7 m3/h
Output pump 13,2 m3/h
Delivery height 12m
Pressure max. 1,2bar
Pressure max. 40'C
Filtermaterial 25 kg quartz sand or 2 x BEASAN Filterballs
Max. grain size of quartz sand 0,4mm - 1,5mm
Length of connection cable 1,9m
